Jharkhand SWAN

UTL has implemented the State Wide Area Network project for Jharkhand where the Govt offices in the districts, Sub Divisional Headquarters and the Blocks are networked with the State Headquarters at Ranchi for providing Voice, Video and Data Services.

The Network made extensive use of Wireless Infrastructure as well as Optical fiber to connect to remote office apart from the traditional Leased Lines.


The details are as follows:

  • Contract awarded to UTL in 2005.
  • Executed under BOOT Model with the duration of 5 years.
  • Connecting 22 districts, 35 Sub Divisional Headquarters and 212 Blocks and about 4000 Horizontal offices.
  • Interconnecting bandwidth of 2 MBPS at all levels.
  • Value Of Contract: USD 40 Million.
  • OEM Partners: Cisco, Telemart, HP and Carrier.

One of the largest e-governance network in South East Asia with 90% horizontal offices connected through optical fiber and wireless.

Telecom Image

Connectivity established between:

  • District HQ with State HQ - 4Mbps.
  • SDHQ/Block HQ with District HQ - 2Mbps.
  • 11 Horizontal buildings of SHQ on OFC link - 10 Gbps.
  • 400 Horizontal Office POP to their respective SHQ/DHQ/SDHQs - 2 Mbps.



Connectivity facilitated to:

  • More than 1000 offices connected to JharNet.
  • More than 2500 IP phones are installed in the network.
  • More than 4000 internet users are connected to JharNet.



Key Applications:

  • Inter-department applications like Treasury, Tax, Transport etc.
  • Video Conferencing.
  • Voice and Data Services.

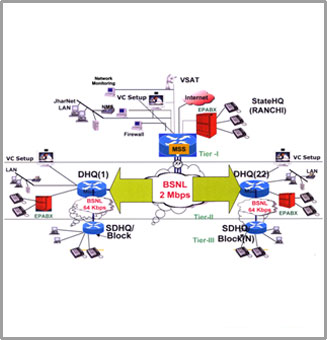

Network Diagram:

Telecom Image
