DWDM Modular (2U & 5U)

MU-DATASHEET (Click to Download)

This is one of the most innovative DWDM product in the world brought by United Telecoms to meet the capacity, cost and energy saving needs of operators world wide. The i-WDM of UTL is completely integrated in 2U to 5U boxes which support 12 till 40 channels respectively on 10G wavelengths.

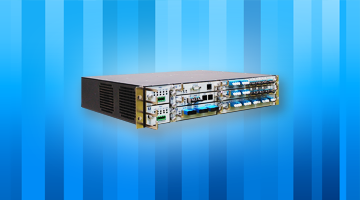

UTL i-WDM : 2U/12 Channels

DWDM 2U

COMPACT LONG HAUL

  • Max 12 Channel 10G and 4 Channel 40G

  • Centralized NMS and GMPLS control plane

  • Supports GMPLS-L0 and L1

  • MUX, AMPS, OSC, SCC all integrated

  • Power : 48V DC or 220V AC with Power consumption of 180 W (4 channel) to 345 W (12 Channel)

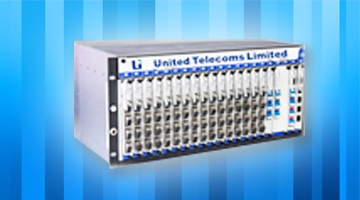

UTL i-WDM : 5U/40 Channels

DWDM 5U

COMPACT LONG HAUL

  • Max 40 Channel 10G

  • Centralized NMS and GMPLS control plane

  • Supports GMPLS-L0 and L1

  • MUX, AMPS, OSC, SCC all integrated

  • Scalability to be integrated with WSS based MD-ROADM
