LXMR is a high-density 40G OTN Muxponder designed
for DWDM and Optical Transport Networks. It aggregates multiple
low and high bit-rate client signals and maps them into
4 X 10G OTU2 line interfaces.
Key Features
16 multi-rate client ports (1G / 2.5G / 10G)
4 X 10G OTU2 line interfaces
Supports Ethernet, SONET/SDH, FC, CPRI, OTN
Client-side and line-side 1:1 protection
OTN compliant as per ITU-T G.709
Remote configuration via EMS / LCT

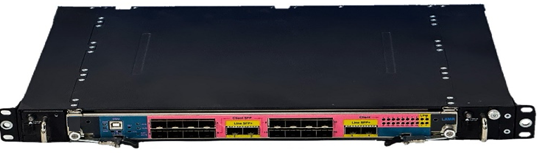

LXMR - 40G Muxponder
Supported Port Combinations
16 X 1G / 2.5G + 4 X OTU2
12 X 1G / 2.5G + 1 X 10GbE + 4 X OTU2
8 X 1G / 2.5G + 2 X 10GbE + 4 X OTU2
4 X 10GbE + 4 X OTU2
System Architecture & Datapath
The LXMR datapath consists of 16 client interfaces connected to
the OTN processor, which performs termination, framing,
multiplexing and switching of OTN signals. Four 10G SFP+
line interfaces provide DWDM transport.
